spiritvox SV-908-4H

spiritvox SV-908 4+4 system with handheld mics, headset mics, and rackmount receiver

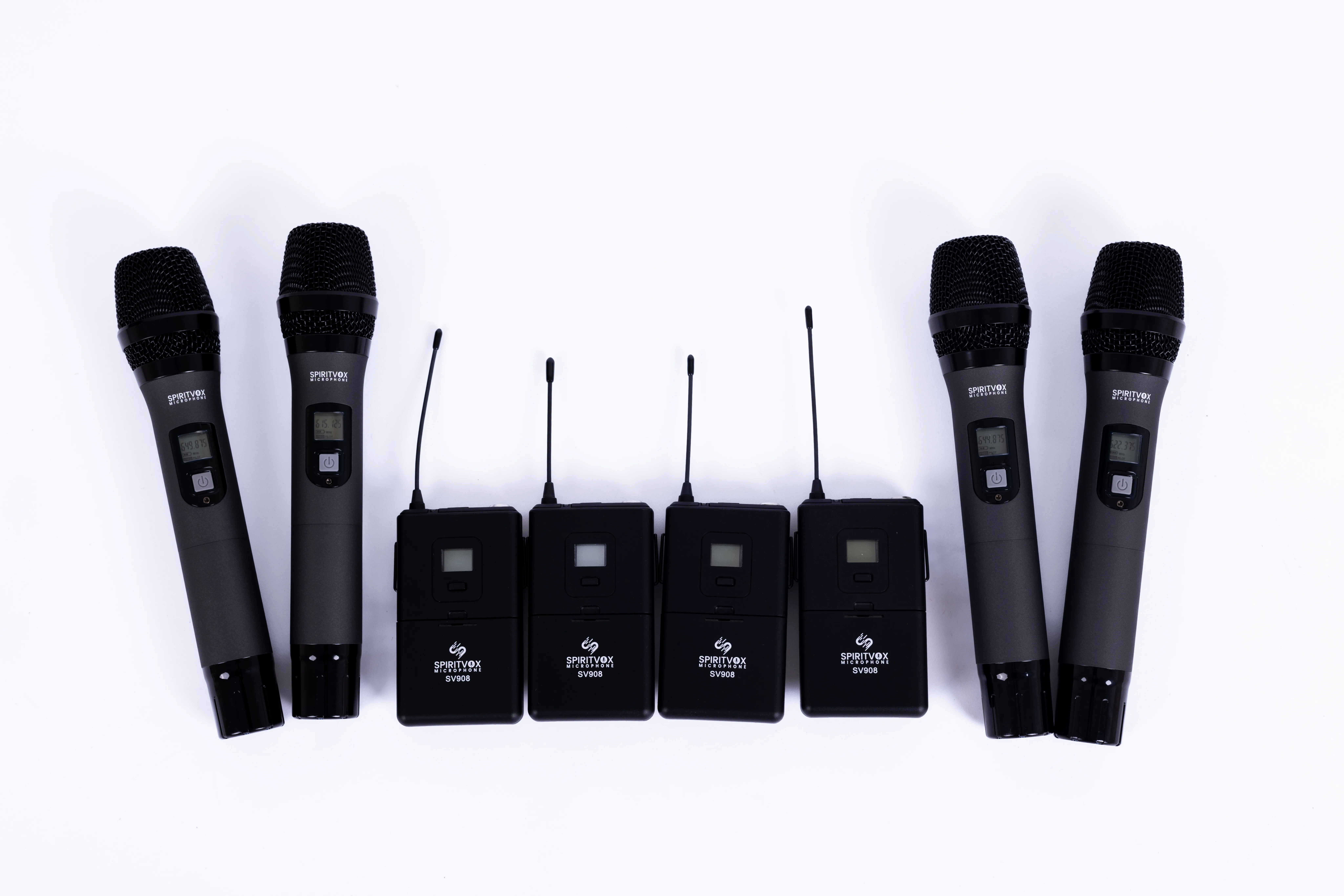

Four professional handheld microphones with metal grilles
Four over-the-ear headset microphones with flexible booms

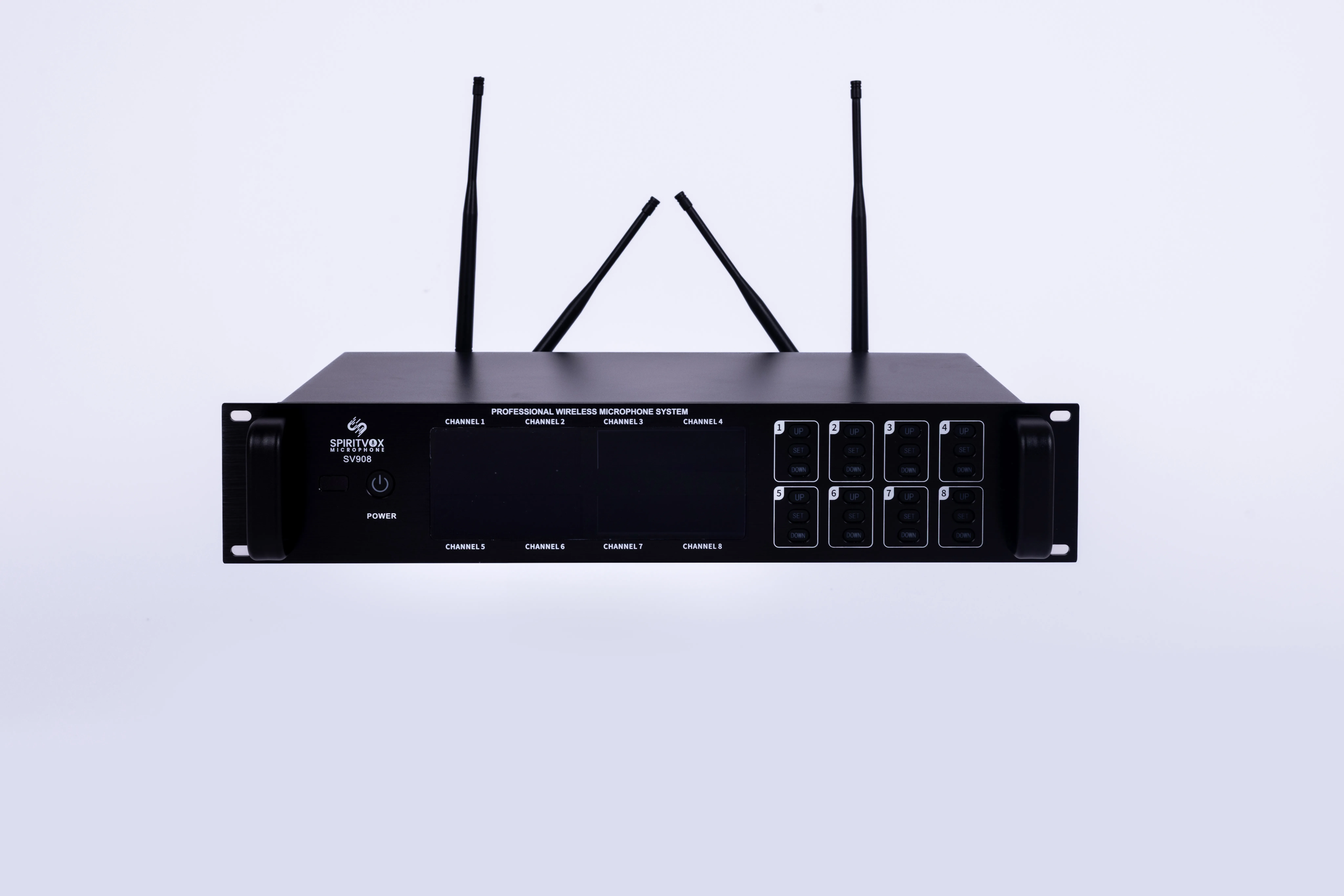

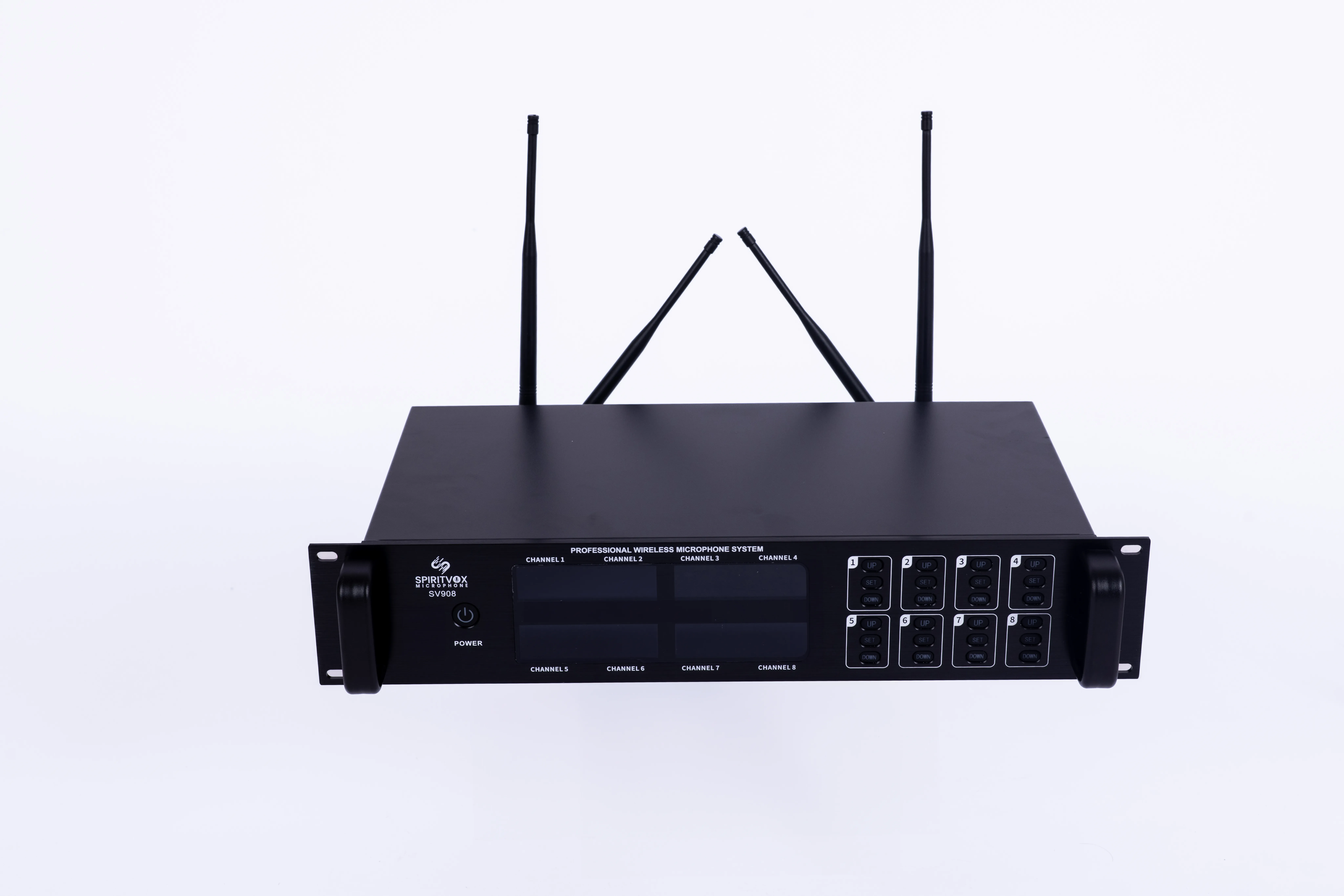

4U rackmount receiver with LCD displays for eight channels

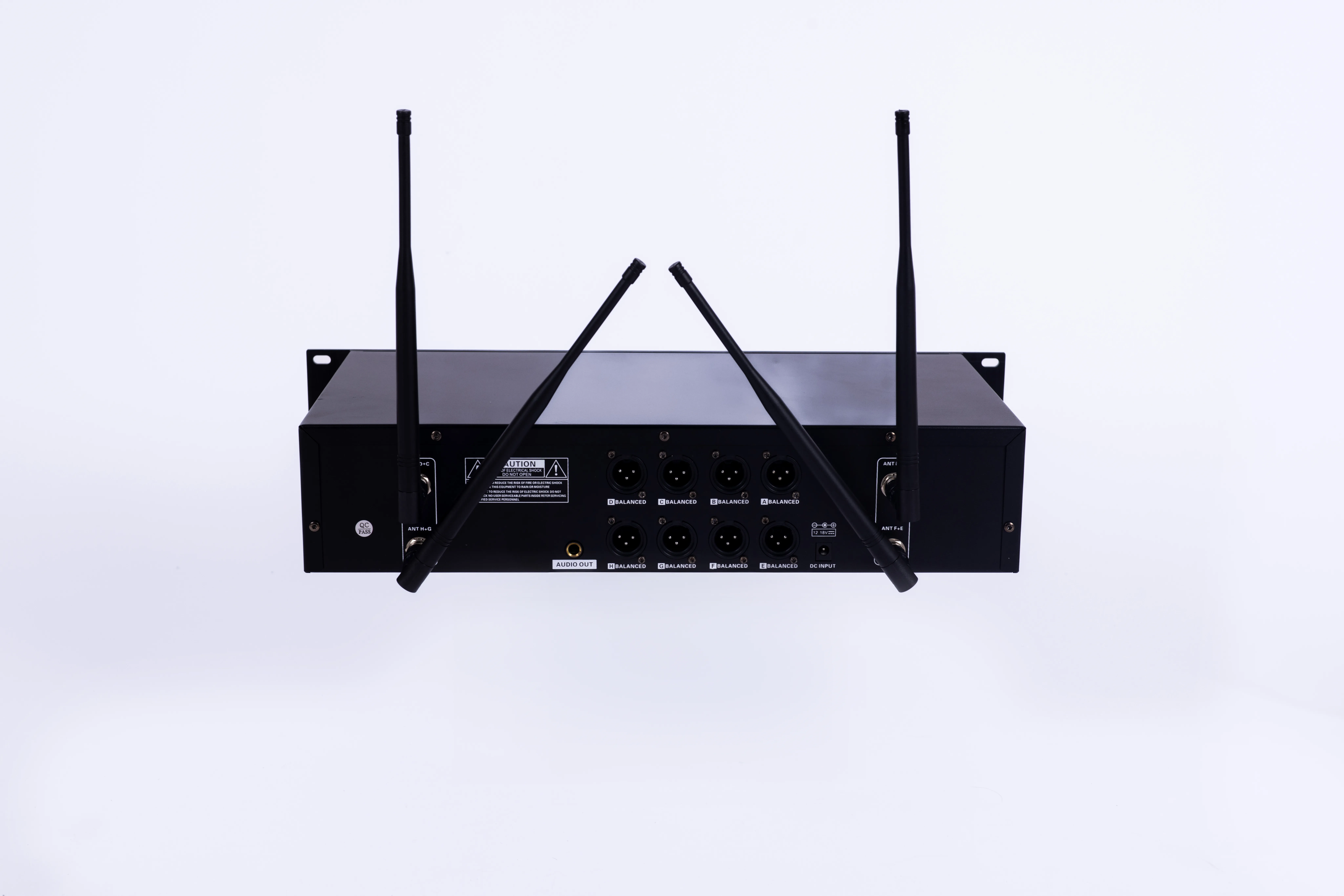

4U rackmount receiver with LCD displays for eight channels

8-Channel Hybrid Wireless Microphone System

The spiritvox SV-908-4H combines four dynamic handheld microphones and four condenser headset microphones in an 8-channel UHF system, offering versatility for theater, presentations, and mixed-use events with a 200m range and AES-128 encryption.

Handheld Microphones

  • Type: 4× Dynamic cardioid
  • Frequency Response: 50Hz-18kHz (±2dB)

Headset Microphones

  • Type: 4× Condenser omnidirectional
  • Frequency Response: 80Hz-16kHz (±3dB)
  • Boom: Flexible, adjustable

Wireless System

  • Channels: 8 simultaneous
  • Frequency Range: UHF 500-960MHz
  • Antennas: 16 (2 per channel)
  • RF Power: 10/30/50mW adjustable

Security Features

  • Encryption: AES-128
  • Squelch: Adjustable per channel
  • Scanning: Auto frequency coordination
  • Interference Rejection: >75dB

Technical Specifications

Detailed technical specifications for SV-908-4H system
Frequency Band UHF 500-960MHz (country-specific)
Modulation Digital FM with error correction
RF Power 10/30/50mW adjustable
Operating Distance 200m (line of sight)
Audio Output 8× XLR balanced, 1× 6.35mm mixed unbalanced
Power Supply DC 12V/2A adapter (included)
SNR >105dB
THD 0.4% @ 1kHz

Recommended Applications

Musical Theater
TV Productions
Fitness Instructors
Conference Panels
Live Streaming
Corporate Events

spiritvox SV-908-4H

8-Channel Wireless System

4 Handheld + 4 Headset Mics

Hybrid System UHF Technology 24-bit Processing AES-128 Encryption True Diversity
  • Handheld Mics: 4× Dynamic
  • Headset Mics: 4× Condenser
  • Encryption: AES-128

Package Includes

  • 4× Handheld Microphones
  • 4× Headset Microphones
  • 4× Belt-pack Transmitters
  • 1× 8-Channel Receiver
  • Power Adapter & Rack Ears
  • User Manual

Professional Tips

Headset Fit: Use included foam windscreens and adjustable ear hooks for secure fit during movement.
Frequency Planning: Assign lower frequencies to headsets to minimize body absorption, higher frequencies to handheld mics.
