spiritvox SV-700P

spiritvox SV-700P complete system with transmitter and digital receiver

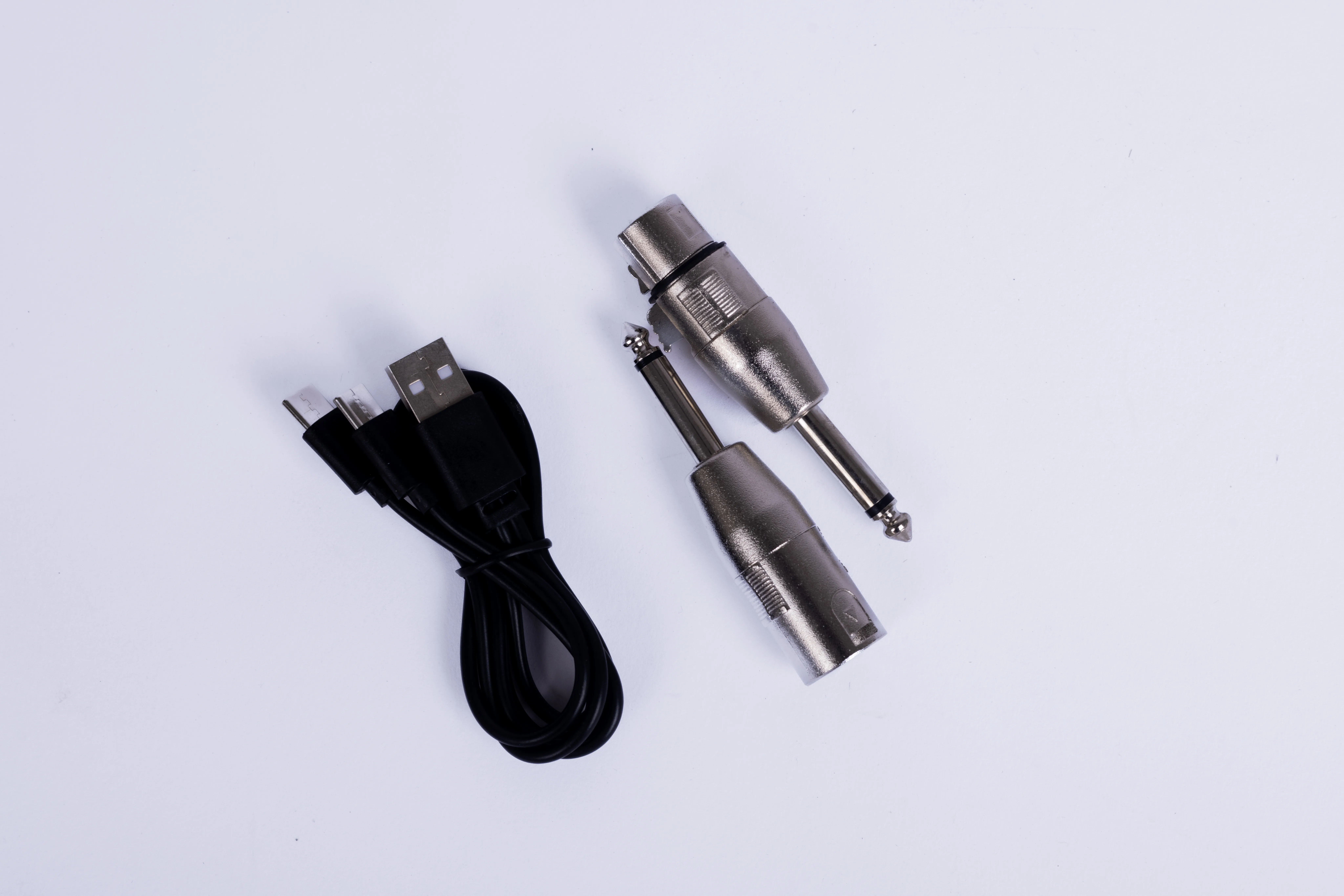

Close-up of professional connectors including XLR, 6.35mm and 3.5mm inputs

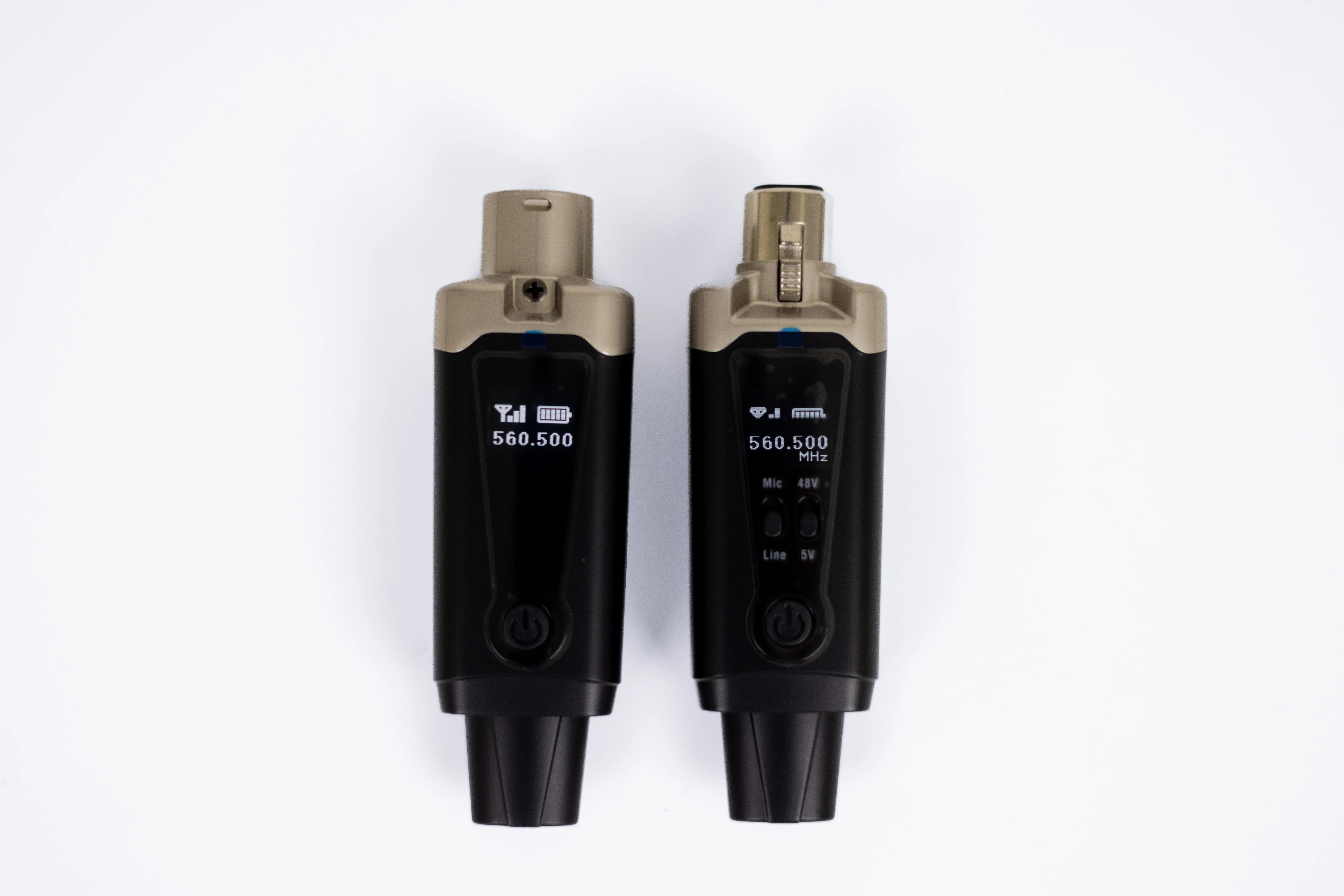

Digital receiver unit with LCD display showing signal strength and battery status

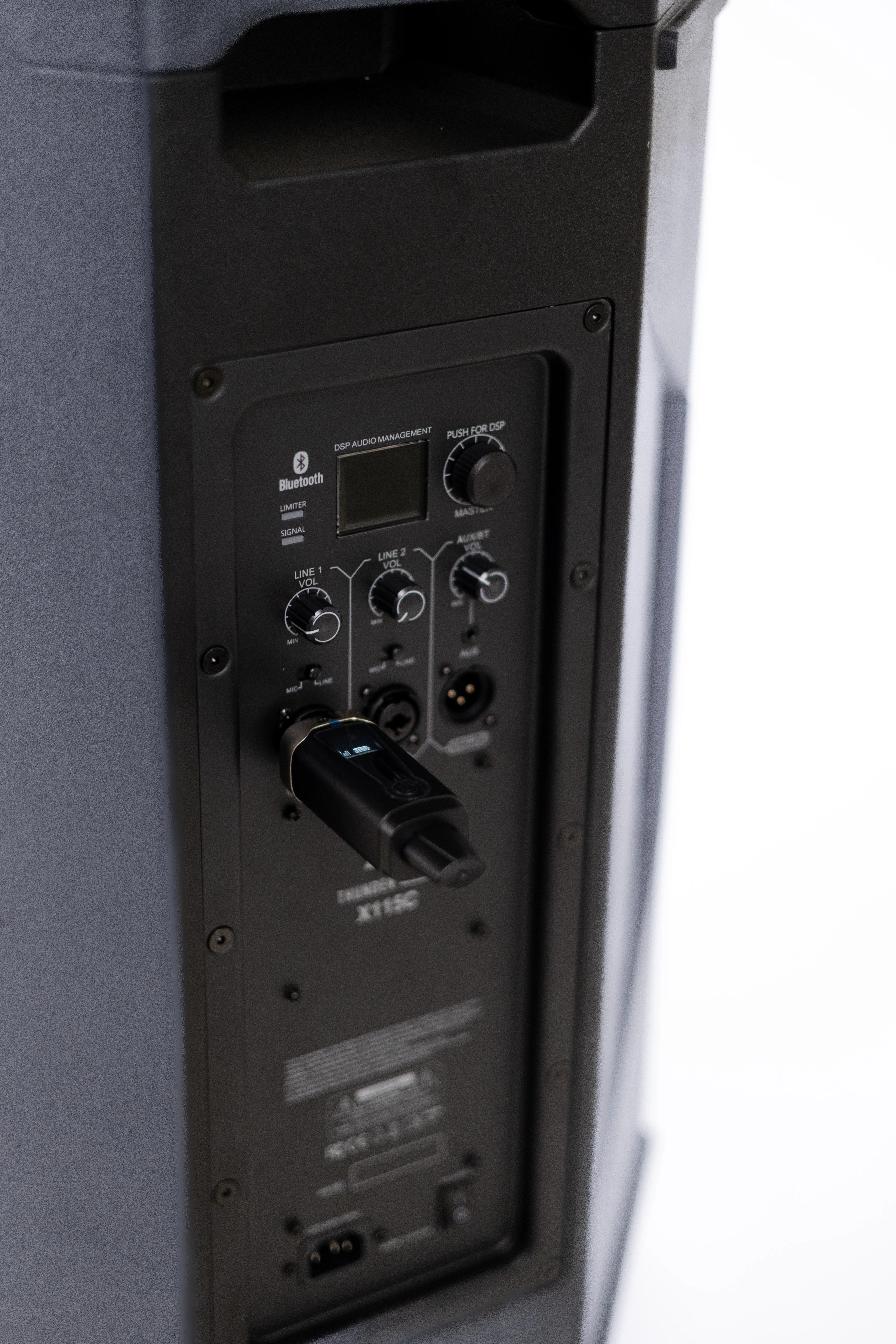

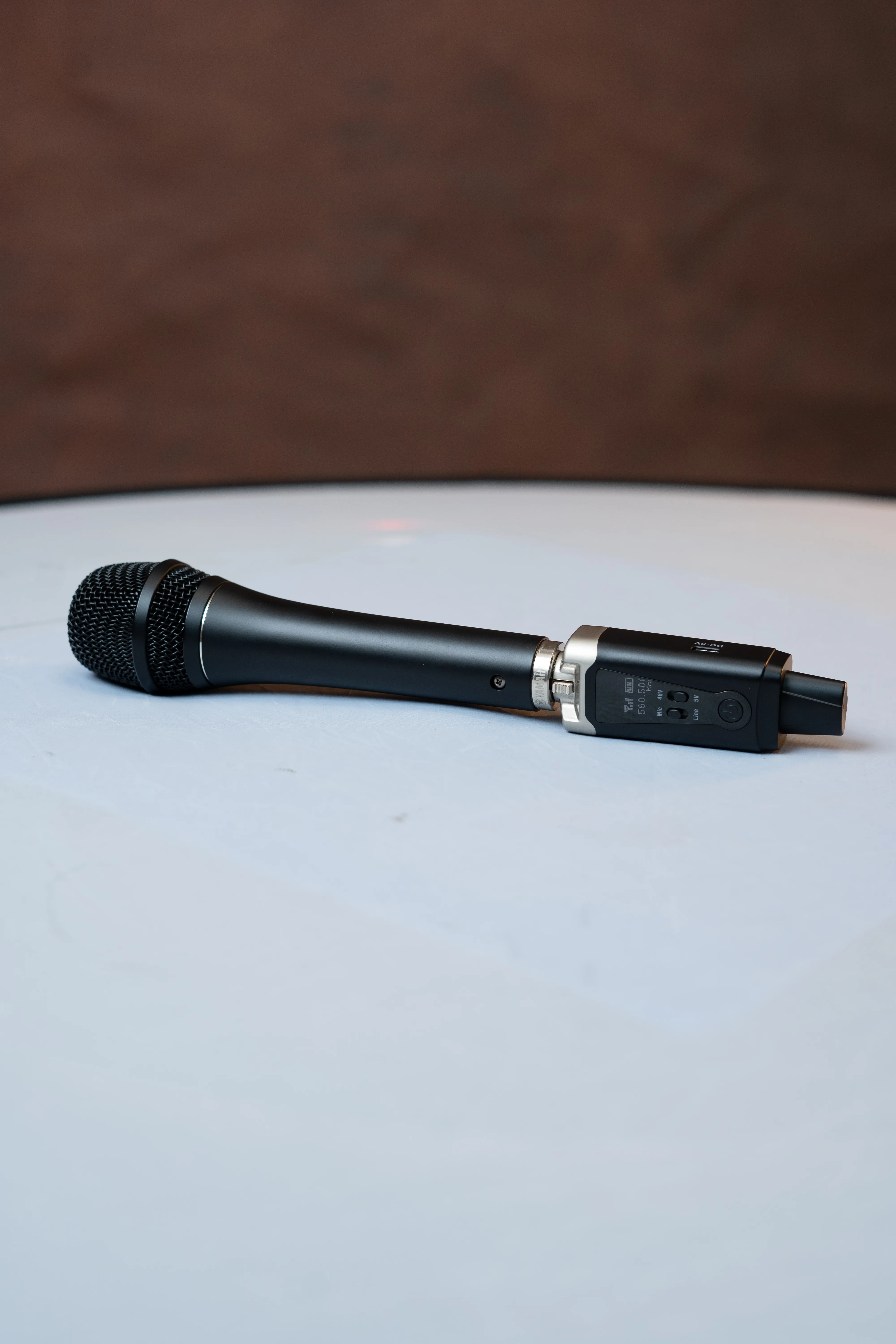

SV-700P system in professional use with wired microphone converted to wireless
SV-700P system in professional use with wired microphone converted to wireless
SV-700P system in professional use with wired microphone converted to wireless

Professional Plug-on Wireless Transmitter

The spiritvox SV-700P transforms wired microphones and passive speakers into wireless systems using advanced UHF technology, delivering studio-quality audio with a 100m range for professional applications.

Transmitter Features

  • Inputs: XLR, 6.35mm, 3.5mm
  • Phantom Power: 48V for condenser mics
  • Gain Control: Adjustable sensitivity

Microphone Conversion

  • Compatibility: Dynamic/condenser mics
  • Frequency Response: 40Hz-20kHz (±2dB)
  • THD: 0.5% @ 1kHz
  • SNR: >105dB

Wireless System

  • Frequency Range: UHF 470-960MHz
  • Channels: 500 programmable
  • Encryption: 256-bit digital
  • RF Power: 10/20/30mW adjustable

Speaker Conversion

  • Impedance: 4-16Ω
  • Protection: Short-circuit, overload
  • Latency: 5ms

Technical Specifications

Frequency Band UHF 470-960MHz
Modulation Digital FM with error correction
RF Power 10/20/30mW adjustable
Audio Output XLR balanced + 6.35mm unbalanced
Power Supply DC 12V/1A adapter (included)

Recommended Applications

Live Performances
Broadcast Studios
Conferences
Worship Facilities
Film Production
Lecture Halls

spiritvox SV-700P

Plug-on Wireless Transmitter

Microphone & Speaker Converter

UHF Technology Dual Function 24-bit Processing Pro Audio
  • Inputs: XLR/6.35mm/3.5mm
  • Response: 40Hz-20kHz
  • Range: 100m
  • Battery: 12+ hours
  • Encryption: 256-bit
  • Phantom Power: 48V

Package Includes

  • 1× SV-700P Transmitter
  • 1× UHF Receiver
  • 1× Battery
  • XLR to XLR Cable
  • 6.35mm to 6.35mm Cable
  • Power Adapter & Charging Dock
  • Carrying Case
  • User Manual

Professional Tips

Setup Tip: Activate 48V phantom power for condenser mics and match speaker impedance (4-16Ω) for optimal performance.
RF Tip: Adjust RF power to minimize interference in crowded environments; use lower settings for battery efficiency.
